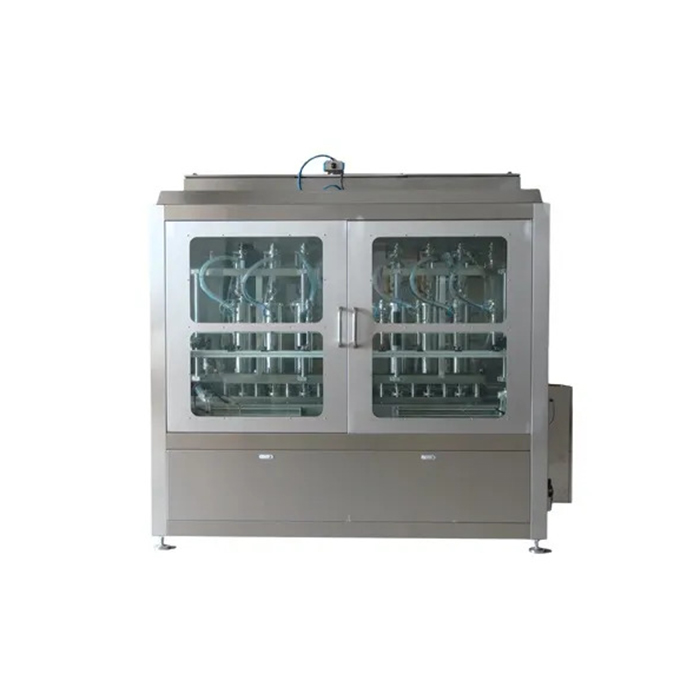

Automatic PET Bottle Filling Machine / Bottling Line / Project

A máquina de tres en un para botella PET integra a función de aclarado, recheo e tapado. Baseado en tecnoloxía avanzada no exterior e deseñado segundo as necesidades de procesamento de recheo de auga

Principais características

1. This machine has a compact structure, completed control system, easy to operate and highly automated.

2. By changing the star-wheel, screw bottle inlet and arc guide plate can realize to change the bottle shape.

3. The parts that direct contact with product are made of food grade stainless steel and no technology corner pockets and easy to clean.

4. By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.

5. The machine adopts high effective cap sorting system and completely self control and protective device.

6. The machine is equipped with perfect overload protective device that can keep the equipment and operator safely.

7. The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.

8. The electric components and pneumatic components are all introduced from world famous brand products.

Cantidade do posto de traballo	Aclarado 32, recheo 32, tapado 10
Capacidade de produción	15000BPH (500ml)
Presión da fonte de aire	0,7Mpa
Consumo de aire	1,2m3 / min
Presión de auga de lavado	0,2-0,25Mpa
Capacidade de auga de lavado	2,5T / H
Potencia principal do motor	3,2kW
Potencia total	4,8kw
Dimensión	4250X2150X2200mm (L × W × H)
peso	5200kg

Tamén fornecen a planta de envasado de auga completa automática

Inclúe 4 partes principais:

1. Plastic bottle blow molding machine
2. Water cleaning system
3. Water washing, filling, capping machine.
4. Conveyor system, labeling machine, dating machine, film wrapping machine

A descrición principal da liña completa:

1. The plant can produce different volume bottles, from 200ml to 2000ml bottles, round and square bottles, plastic and glass bottles. It is very easy to change the different bottle molds.

2. The plant is highly automatic, you can operate on the touch screen to adjust the machine speed and working.

3. We have different speed plants, commonly, 2000BPH, 4000BPH, 7000BPH, 10,000BPH, 15000BPH..ect.

4. The material is stainless steel 304, food grade much clean and safe.

5. We provide the engineers for customer installation, training in customer's factory.

Modelos e lista de velocidade

Modelo	XGF8-8-3	XGF14 / 12/5	XGF16 / 16/5	XGF24 / 24/8	XGF32 / 32/10
Lavarse as mans	8	14	16	24	32
Válvulas de recheo	8	12	16	24	32
Atrapando as mans	3	5	5	8	10
PET / Botellas de vidro adecuadas (150ml a 2000ml)
Capacidade (velocidade) Base sobre 500ml	2000BPH	5000BPH	7000BPH	12000BPH	15000BPH

Provedor de marcas de compoñentes eléctricos

Composición principal	Descrición Provedor
PLC	Mitsubishi (Xapón), Siemens (Alemaña)
Pantalla táctil	Weinview (Taiwán)
Convertidor de frecuencia	Mitsubishi (Xapón), Siemens (Alemaña)
Interruptor de aire	Schneider (Francia)
Interruptor	Siemens (Alemaña)
Contador	Siemens (Alemaña)
Interruptor fotoeléctrico	Omron (Xapón)

Detalles rápidos

Tipo: Máquina de recheo
Estado: Novo
Aplicación: bebidas, produtos químicos, médicos
Tipo de embalaxe: Botellas
Material de envasado: plástico
Automatic Grade: Automático
Tipo de conducción: eléctrica
Tensión: 380V / 220V
Potencia: 4.8KW
Lugar de orixe: Shanghai, China (continente)
Nome da marca: NPACK
Dimensión (L * W * H): 4250X2150X2200mm
Peso: 5200KGS
Certificación: CE, ISO, SGS
Servizo posvenda: Enxeñeiros dispoñibles para maquinaria de servizo no exterior
Fábrica: MAQUINARÍA DE ENLACES
Tamaño da botella: 150ml a 2000ml
Diámetro do pescozo da botella: 15-55 mm
Material da botella: Plástico / Vidro
Velocidade (base en botella de 500ml): 15000B / H
Sistema de control: PLC Touch Screen (MITSUBISHI JAPAN)
Tapón: Parafuso / prensado
Ascensor da tapa: ter
Enchido líquido: auga mineral / pura
