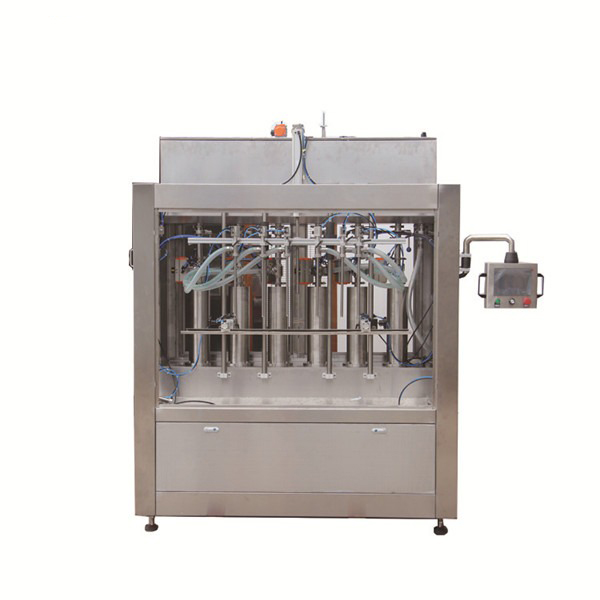

Máquina de recheo de líquido para a louza

A dishwashing liquid filling machine is a type of automated equipment that is designed to fill bottles or containers with dishwashing liquid. It typically uses a series of pumps, sensors, and nozzles to accurately measure and dispense the correct amount of dishwashing liquid into each container. These machines can be used in industrial or commercial settings to increase production efficiency and accuracy.

Especificacións

máquina de recheo de líquido para lavar louza
1. With CE Certificate,Meet the GMP
2. Material:304or316Stainless Steel
3. Pay:T/T,L/C

Descrición

CE da UE
ISO9001
Atender aos requisitos de GMP
longlife of service, low mainteinance rate

Función principal

A máquina é avanzada máquina de recheo de alta precisión que pode completar o proceso de reconto de botellas, recheo e tapado automaticamente.

características

1. Compactado estruturado, bo aspecto, fácil de operar e altamente automatizado.

2. Os compoñentes de contacto co material están feitos de aceiro inoxidable, fácil de limpar.

3. O volume de recheo é controlado con válvulas de película para garantir a precisión.

4. As válvulas de recheo de alta velocidade e de alta precisión non garanten fugas.

5. Está equipado con sistema de alimentación de tapóns de gran eficacia.

Opción de idioma

Monitor language: English, Spanish, Arabic, Portuguese, Russian, Italian, French, Korean.

Principais características:

1. Linear type piston filling machine special designed for sticky liquid,such as detergent, shampoo, lotion,lubricant oil,edible oil, etc. international advanced technology, already approved by well-known companies such as Bayer. High filling accuracy, simple structure, stable working, widely application. Counting of bottles inlet, qualitative filling, bottles outlet are done automatically.

2. Not only the whole 13 filling nozzles dosage can be rough adjusted, but also each single filling nozzles dosage can finely adjusted.

3. Pode memorizar moitos parámetros, útiles para varias especificacións cambiadas, toda a dosificación de recheo pode axustarse mediante pantalla táctil.

4. Liquid control for normal working liquid level control, sound and light alarm device, guarantee the liquid level at normal condition; also can achieved for inlet valve/pump control.

5. Material outlet joints all adopts quick-assembling type (clamp type), easily for clean. Sealing gaskets adopts fluorine rubber O-ring; sanitary connecting pipes.

6. With protection case, drip gutter, main materials are made of SS304, wetted parts are made of SS316L.

Parámetro técnico principal

Elemento	Nome	Parámetro técnico
01	Dimensión da máquina (L * W * H)	2200mm * 1400mm * 2800mm
02	Peso da máquina	Aproximadamente 1400Kg
03	Diámetro interno de apertura do recipiente	≥φ35mm
04	Contedor adecuado	1Litro .2Litro
05	Altura do recipiente	80-350mm
06	Fonte de alimentación	CA 380V; 50HZ
07	Potencia	5Kw
08	Precisión de recheo	≤ ± 1%
09	Fonte de aire	0,6Mpa de aire comprimido estable e limpo
11	Número de boquillas de recheo	13
12	Altura do transportador	900mm ± 50mm
13	capacidade	≤3200bottles / hour (tomar auga como proba)
14	Botella en dirección de alimentación	De esquerda a dereita

Detalles rápidos

Tipo: Máquina de recheo
Estado: Novo
Aplicación: química
Tipo de embalaxe: Botellas
Material de envasado: madeira
Automatic Grade: Automático
Tipo conducido: Neumático
Tensión: 220v
Potencia: 3KW
Lugar de orixe: Shanghai. China (continente)
Nome da marca: NPACK
Dimensión (L * W * H): 2200mm * 1400mm * 2800mm
Peso: 1400
Certificación: CE
Servizo posvenda: Enxeñeiros dispoñibles para maquinaria de servizo no exterior
material: SS304
PLC: Panasonic
Pantalla táctil: Panasonic

Dishwashing liquid filling machines are specifically designed to package dishwashing liquids into various types of containers. These machines are essential for businesses in the cleaning industry who want to streamline their packaging process and increase their productivity. There are several types of dishwashing liquid filling machines available in the market, each with its unique features and benefits.

One of the most popular types of dishwashing liquid filling machines is the volumetric filler. This machine operates on the principle of displacement and uses a piston to fill the containers with the precise amount of liquid required. This type of machine is highly accurate and is suitable for packaging liquids with a constant viscosity.

Another type of dishwashing liquid filling machine is the gravity filler. This machine works on the principle of gravity and uses a funnel to fill the containers with the liquid. The liquid is then dispensed into the containers based on the height of the liquid in the funnel. This type of machine is ideal for packaging low viscosity liquids and is very cost-effective.

The third type of dishwashing liquid filling machine is the overflow filler. This machine works on the principle of overflow and uses a hopper to fill the containers with the liquid. The liquid is then dispensed into the containers based on the height of the liquid in the hopper. This type of machine is ideal for packaging high viscosity liquids and can handle liquids with large particles.

When choosing a dishwashing liquid filling machine, it is important to consider factors such as the size of your production line, the viscosity of the liquid, the type of containers you will be using, and the speed of production you require. It is also important to consider the ease of maintenance and the reliability of the machine.

In conclusion, a dishwashing liquid filling machine is a crucial investment for businesses in the cleaning industry. With the right machine, businesses can increase their productivity, improve the quality of their packaging, and save time and money. When choosing a dishwashing liquid filling machine, it is important to consider factors such as the size of your production line, the viscosity of the liquid, the type of containers you will be using, and the speed of production you require.
