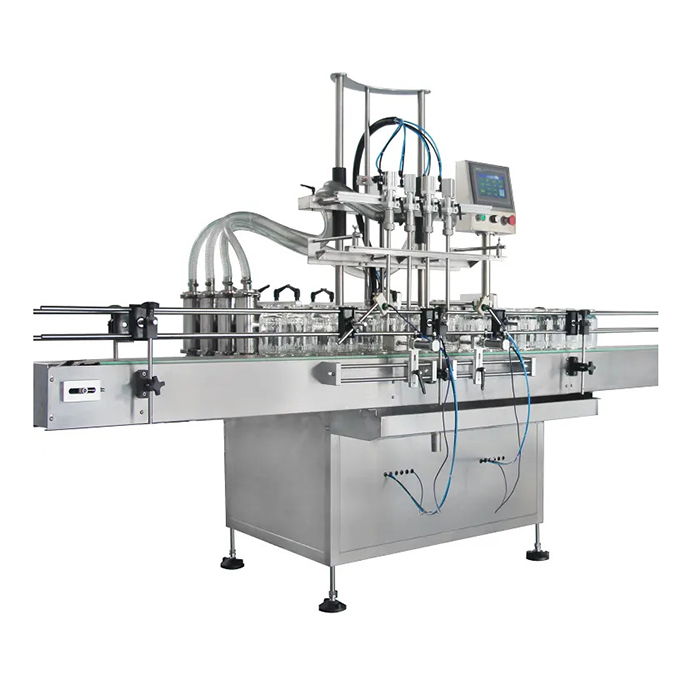

Máquina de recheo automático de botellas de líquido de 4 cabezas

Inicio / Máquinas de recheo / Máquina de recheo de botellas / Máquina de recheo automático de botellas de líquido de 4 cabezas

Máquina de recheo automático de botellas de líquido de 4 cabezas

Aplicacións:


4 Heads Automatic Liquid Bottle Filling Machine is suitable to the material: coating agent, suspension agent, edible oil, lubricating oil and water agent etc.

O principio e característica:


The machine is a ram filler, it using the PLC programmable control, equipping with tonching screen person-machine interface system, realizing automatic filling, automatic capping. it is suit for the different bottles and caps, only make some adjustment .

Característica:

1. SS316L piston pump fills high precision suitable for oral liquid and light liquid with viscosity.

2. This machine is compact design, streamline bottle conveying, more stable.

3. No bottle no fill function.

4. Auto frequency conversion adjusting speed.

5. Auto display and count.

6. Rolling sealer uses single flexible knife with 12 rolling heads, one machine can auto entry, filling, adding cap, and sealing smoothly.

7. One machine can auto entry, filling adding capper, and sealing.

8. The whole machine is designed according to the requirements of GMP.

Principais especificacións técnicas


Número de cabezas de recheo4 cabezas
Número de cabezas de torsiónCabeza única
A gama de recheo20 ~ 1000ml
A gama de perfectos20-100ml \ 50-250ml \ 100-500ml \ 200ml-1000ml
A elección da portadaTapa resistente a roubos, tapa de parafuso, cuberta de aluminio ROPP
Capacidade de produción2400 ~ 3000 (botellas / hora)
Medir a precisión≤ ± 1
A taxa de elixible≥99
Potencia220V 50 / 60Hz
Potencia Total≤1.2kw
Presión do aire0,4 ~ 0,6MPa
Peso
800kg
Dimensións externas (mm)2000 × 1200 × 1600

Detalles rápidos


Tipo: Máquina de recheo
Estado: Novo
Aplicación: bebidas, produtos químicos, médicos
Tipo de embalaxe: Botellas
Automatic Grade: Automático
Tipo de conducción: eléctrica
Tensión: 220V / 110V 50 / 60Hz
Potencia: ≤1.2KW
Lugar de orixe: Shanghai, China (continente)
Nome da marca: NPACK
Dimensión (L * W * H): 2000 * 1200 * 1600mm
Peso: 800kg
Certificación: GMP
Servizo posvenda: Enxeñeiros dispoñibles para maquinaria de servizo no exterior
Nome do produto: Máquina de recheo de botellas de líquido
A gama de recheo: 20 ~ 1000ml
A gama de perfectos: 20-100ml \ 50-250ml \ 100-500ml \ 200ml-1000ml
Capacidade de produción: 2400 ~ 3000 (botellas / hora)
Precisión da medida: ≤ ± 1
A taxa de elixible: ≥99
The choice of cover: Burglarproof cover, screw cover


A 4 heads automatic liquid bottle filling machine is a piece of equipment designed to fill bottles with liquids such as water, juice, oil, and other fluids. This machine works by accurately measuring and dispensing the required amount of liquid into the bottle through four filling heads that work simultaneously. The machine is fully automated, which makes the process faster, efficient, and less labor-intensive.

The 4 heads automatic liquid bottle filling machine is designed to handle a range of bottle sizes and shapes, making it versatile and ideal for use in a variety of industries. The machine can also fill different types of liquids, which makes it a suitable option for use in industries such as food and beverage, pharmaceuticals, and cosmetics.

The machine is easy to operate and has a user-friendly interface that allows for easy setup and programming of the filling parameters. The parameters can be customized to suit the specific needs of the product being filled, such as filling volumes and speeds.

The filling process is accurate and consistent, which helps to maintain the quality of the product being filled. The machine can also be integrated with a capping or labeling machine, which further streamlines the packaging process and increases efficiency.

In conclusion, a 4 heads automatic liquid bottle filling machine is an essential piece of equipment for any business that produces and bottles liquid products. It provides a fast, efficient, and accurate way of filling bottles with liquid products, which helps to increase productivity and reduce costs. The machine is customizable and can handle a range of bottle sizes and types, making it versatile and suitable for use in various industries.
